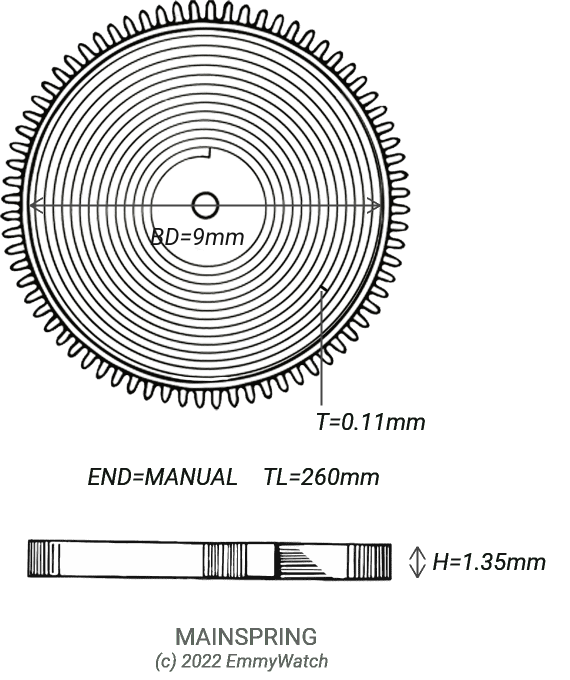

Mainspring
1.35 x 0.110 x 260 x 9.0 mm
Height (H): 1.35mm
Thickness (T): 0.11mm
Total Length (TL): 260mm
Barrel Diameter (BD): 9mm
End Type: Manual
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
GR Approximation
This mainspring does not have a GR reference. The following GR mainsprings are the closest fit, when values differ the exact value is shown brackets for reference:
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Seiko Y563-603B | PULSAR CASE REFERENCE | |
| Citizen 4-223578 | CITIZE CASE REFERENCE | |
| Citizen 4-G06862 | CITIZEN CASE | |
| Illinois 16/S | ||
| Tissot 761 | 17JL AUTO CAL | 7.75 |
| Jubilee 1202 | 12.5 | |
| Jubilee 1202 | 12.5 | |
| Jubilee UT285 | ||
| Omega 551.027 | OMEGA CASE USES CALIBER 661 | |
| Seiko 6109-7047 | SEIKO | |
| Seiko Y563-603B | PULSAR CASE REFERENCE | |
| Tissot 761 | 17JL AUTO CAL | 7.75 |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to the mainspring used by the following movements. A similar mainspring differs slightly in one or more dimensions but may possibly still work as a replacement. When values differ the exact value is shown brackets for reference:
No results found for your filter
