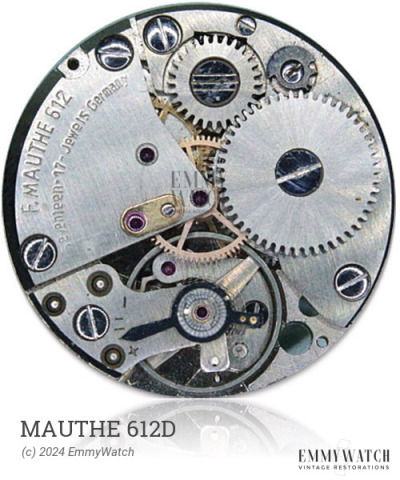

Mauthe 612D
Ligne: 8.75'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 19.7 mm
Height: 2.95 mm
Hands: 1.20 x 0.60 / 0.18 mm
The Mauthe 612D watch movement belongs to a series of movements that includes the 979 through 983 as well as the 986 through 988, 1026, 1027, and 1059. The specific differences among these movements are not known. The Mauthe 612D movement encompasses functions such as manual winding and a sub-second display.
The Mauthe 612D features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 814 | Ordinary/None | Buy staff |
| 877 | Incabloc | Buy staff |
| 3341 | Kif | Buy staff |
| 3217 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.15 x 0.090 x 240 x 7.5 mm | GR2796 | Manual | Buy mainspring |
| 1.15 x 0.090 x 220 x 7.5 mm | Manual | Buy mainspring | |
| 1.10 x 0.090 x 240 x 7.5 mm | GR2592 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
