Mainspring

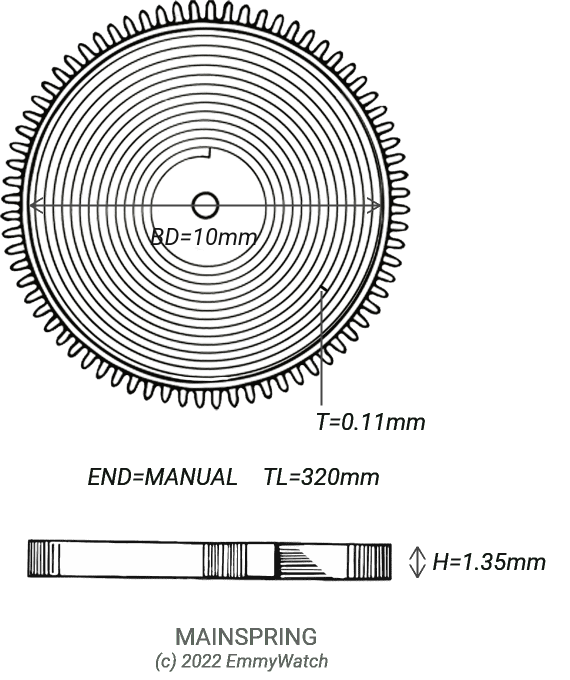

1.35 x 0.110 x 320 x 10.0 mm
Height (H): 1.35mm
Thickness (T): 0.11mm
Total Length (TL): 320mm
Barrel Diameter (BD): 10mm
End Type: Manual
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
GR Approximation
This mainspring does not have a GR reference. The following GR mainsprings are the closest fit, when values differ the exact value is shown brackets for reference:
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Seiko 1104-0070 | SEIKO CASE REFERENCE | |
| Citizen 4-214331 | CITIZEN CASE | |
| Seiko 7009-524A | SEIKO CASE REFERENCE | |
| Citizen 4-409558 | CITIZEN CASE | |
| Citizen 4-S49399 | CITIZEN CASE REFERENCE | |
| Pulsar V532A | ONLY PART SUPPLIED IS STEM | 10.5 |
| Citizen 4-S58703 | CITIZEN CASE | |
| Citizen 4-Y51901 | CITIZE CASE REFERENCE | |
| Dugena DUROWE1055 | DUROWE 1055 | 648 |
| Felsa 601 | 17JL INCABLOC | 6.75 |
| Omega 16482 | OMEGA CASE - USES CALIBER 480/483 | |
| Pulsar V532A | ONLY PART SUPPLIED IS STEM | 10.5 |
| Seiko 1104-0070 | SEIKO CASE REFERENCE | |
| Citizen 4-214331 | CITIZEN CASE | |
| Seiko 1220-0030 | SEIKO CASE REFERENCE | |
| Seiko 7009-524A | SEIKO CASE REFERENCE | |
| Tenor Dorly 1366 | 216000 BPH - CHRONO - AUTO | 11.5 |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to the mainspring used by the following movements. A similar mainspring differs slightly in one or more dimensions but may possibly still work as a replacement. When values differ the exact value is shown brackets for reference:
No results found for your filter
