Zenith 8 3/4
Ligne: 6.75'''
Jewels: 15/17/21
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1935
Diameter: 15.25 mm
Height: 3.3 mm
Hands: 1.00 x 0.55 mm
Base: A. Schild 969

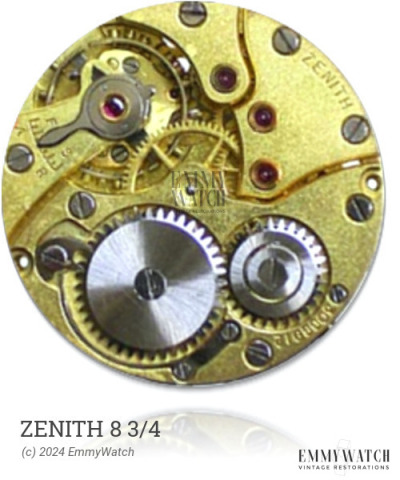

The Zenith 8 3/4 watch movement is equipped with a lever and escape wheel made of gold, ensuring durability and precision. It features three barrel-arbor bearings, providing stability and smooth operation. The crown- and ratchet wheel are guided between two barrel bridges, minimizing wear on the bridge during winding. This movement is a manual wind type and is equipped with Incabloc Shock Protection. It also has covered winding functionality. The Zenith 8 3/4 movement was produced around 1935.
The Zenith 8 3/4 features the following functions:
- Incabloc Shock Protection
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.055 x 200 x 5.5 mm | GR4037 | Manual | Buy mainspring |
| 1.50 x 0.060 x 180 x 5.5 mm | GR4040 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
