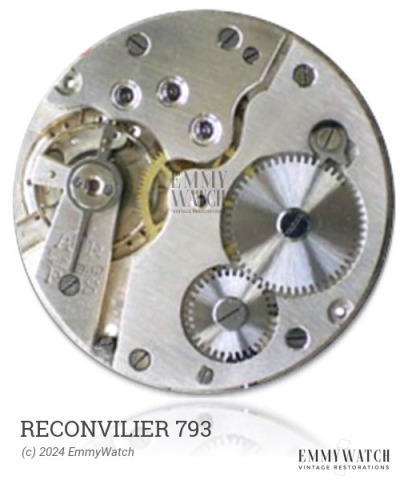

Reconvilier 793
Ligne: 5.5'''
Jewels: 17
Lift Angle: 53°
Frequency: 19800 vph
Type: Manual Wind
Period used: 1963-
Diameter: 12.4 mm
Height: 2.85 mm
Hands: 0.70 x 0.40 mm
The Reconvilier 793 is a manual wind, back-winder watch movement that was used from 1963 onwards. It features a straight lever escapement and is equipped with Incabloc Shock Protection. The movement also includes the function of backwinding.
The Reconvilier 793 features the following functions:
- Incabloc Shock Protection
- Manual wind, back-winder
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.050 x 180 x 4.8 mm | Manual | Buy mainspring | |
| 1.20 x 0.060 x 180 x 5.5 mm | GR2840 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
