New Factory Tavennes 304
(Tavennes)
Ligne: 7.75'''
Jewels: 17/19/21
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1958-1967
Diameter: 17.5 mm
Height: 3.8 mm
Hands: 1.20 x 0.70 x 0.20 mm

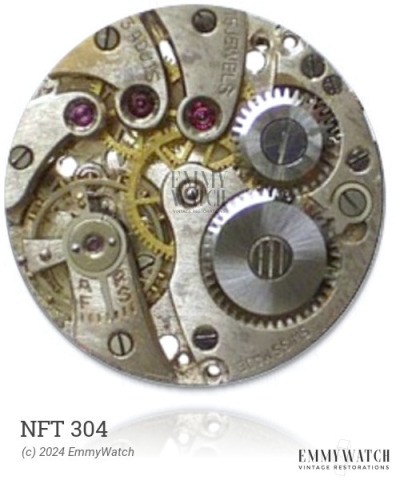

The New Factory Tavennes 304 watch movement, used from 1958 to 1967, features a mobile stud carrier introduced in 1964, replacing the fixed stud carrier. The indirectly driven minute hand enables the incorporation of a large balance and contributes to a low-profile design. Variations between the 2360 and 2361 models remain unspecified. This movement supports manual winding and includes a sweep second function.
The New Factory Tavennes 304 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 240 x 7.0 mm | GR3202 | Manual | Buy mainspring |
| 1.30 x 0.080 x 220 x 7.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
