Return To ShopWatch Database

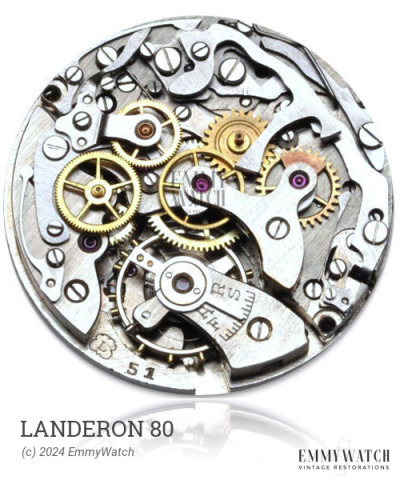

Landeron 80
Ligne: 13'''
Jewels: 17
Frequency: 18000 vph
Type: Manual Wind
Period used: 1963-
Diameter: 29.4 mm
Height: 4.55 mm
Hands: 1.50 x 0.90 mm
The Landeron 80 watch movement is a manual wind movement that features a sweep second hand. Produced in the period from 1963 onwards, it is considered a Wehrmachtswerk (Germany Military Movement). Variations and specific differences between the 6300 to 6302 movements are not documented or known.
The Landeron 80 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.140 x 360 x 12.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| GIB/BOLT INCA SHOCK .15 THICK | 400/774 | 180.15/INCA #12 | Buy part |
| JEWEL, INCA BALANCE 135X50X10 | 400/12 | 111.10/INCA #9 | Buy part |
| JEWEL, UPPER CAP INCA 120X18 | 400/8 | 122.11/INCA #6 | Buy part |
| SCREW, INCA 18X50 | 400/2 | 150.11/INCA #14 | Buy part |
| SHOCK SPRING, UPPER INCABLOC | 400/4 | 170.03/INCA #1 | Buy part |
| SHOCK UNIT COMPLETE, LOWER | 400/33 | 100.20.10 | Buy part |
| UPPER SETTING D360 H10 | 400/1490 | 100.21.360.10 | Buy part |
