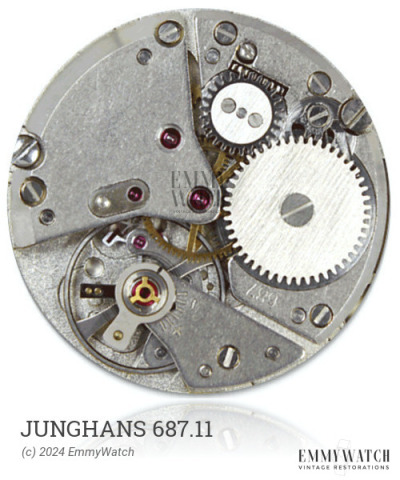

Junghans 687.11
Ligne: 17'''
Jewels: 15
Power Reserve: 30 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1936
Diameter: 38.2 mm
Height: 3.45 mm
Hands: 1.90 x 1.00 / 0.28 mm
The Junghans 687.11 watch movement is an open face calibre from a series of movements numbered 540 through 549, with the specific differences between them not known. It features stem winding and setting, and includes a sub-second function. This movement was typically used around the year 1936.
The Junghans 687.11 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.180 x 450 x 15.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
