Fontainemelon 170
(Font)
Ligne: 4.5 x 11'''
Jewels: 17
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Size: 9.8 x 24.4 mm
Height: 3.65 mm
Hands: 1.00 x 0.50 mm

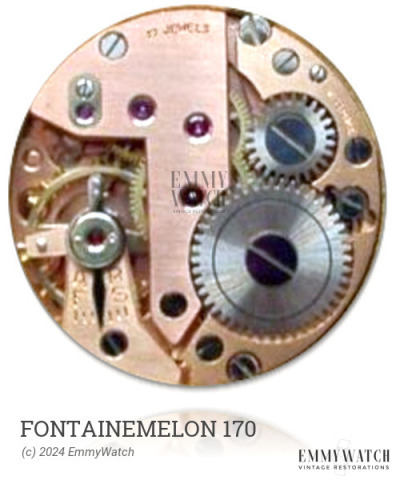

The Fontainemelon 170 is a manual wind mechanical watch movement that was made before 1932. It features a bimetallic screw balance and was cased by Ami LeCoultre, with an additional movement signature by Blancpain. The specific differences between the Peseux 90-96 movements are not known.
The Fontainemelon 170 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.080 x 220 x 7.0 mm | GR3081 | Manual | Buy mainspring |
| 1.25 x 0.080 x 200 x 6.5 mm | GR3080 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
