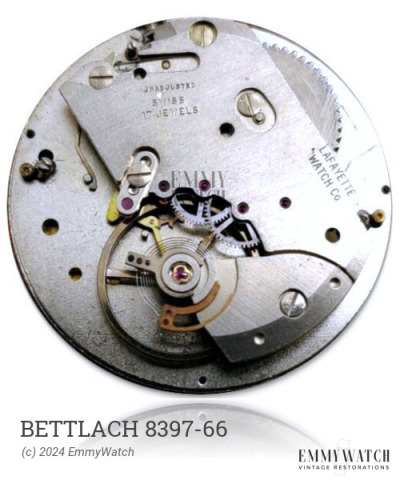

Bettlach 8397-66
(EB)
Ligne: 10.5'''
Jewels: 17/18
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1943
Diameter: 23.7 mm
Height: 3.1 mm
Hands: 1.30 x 0.80 / 0.22 mm
The Bettlach 8397-66 watch movement is a mechanical movement that was in use during approximately 1943. It features a manual wind mechanism and has sub second functionality. The movement also incorporates Incabloc shock protection technology. This movement is specifically designed for sub second timekeeping.
The Bettlach 8397-66 features the following functions:
- Incabloc Shock Protection
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.105 x 300 x 9.0 mm | GR3125 | Manual | Buy mainspring |
| 1.25 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.20 x 0.110 x 320 x 9.5 mm | GR2950 | Manual | Buy mainspring |
| 1.20 x 0.100 x 300 x 9.0 mm | GR2920 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
