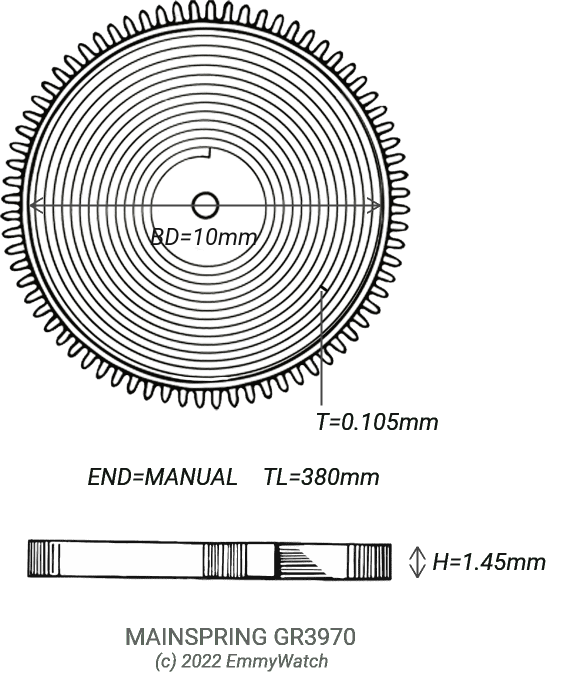

Mainspring

1.45 x 0.105 x 380 x 10.0 mm

GR Reference #: GR3970

Height (H): 1.45mm

Thickness (T): 0.105mm

Total Length (TL): 380mm

Barrel Diameter (BD): 10mm

End Type: Manual

The Height (H) (1.45mm) is selected. Return to full mainspring page here.

Buy this mainspring

Similar Mainspring Listing

The Height (H) (1.45mm) in this mainspring is also used by the following movements with similar mainsprings. When values differ the exact value is shown brackets for reference:

Movement	Mainspring	Buy
Bulova 13AF	1.45 x 0.100 (0.105) x 380 x 10.0 mm	Buy mainspring
A. Schild 2074	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 2061	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 2060	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 2084	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 2064	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
Alpina 765	1.45 x 0.100 (0.105) x 350 (380) x 10.0 mm	Buy mainspring
Cupillard 233-68	1.45 x 0.100 (0.105) x 350 (380) x 10.0 mm	Buy mainspring
Zentra 144	1.45 x 0.100 (0.105) x 350 (380) x 10.0 mm	Buy mainspring
Cupillard 233-69	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
Cupillard 233-70	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
France Ebauches 233.70	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 1914	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
France Ebauches 233.70A	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 2074	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
Wittnauer 1958-2	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
Girard Perregaux 152	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 2061	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 2060	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 1900	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
Zodiac 65	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
Elgin 338 11.5L	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 1901	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 1911	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 1710	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
Caravelle 11ULCB	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
Caravelle 11UBCB	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 1711	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 2084	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 1060	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
Girard Perregaux 132	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
France Ebauches 233.69A	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 2064	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 1814	1.45 x 0.105 x 340 (380) x 9.5 (10.0) mm	Buy mainspring
France Ebauches 233.68	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
Elgin 311 11-1/2L	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 1904	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
France Ebauches 233.69	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
Cupillard 233-69	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
Cupillard 233-70	1.45 x 0.100 (0.105) x 360 (380) x 9.5 (10.0) mm	Buy mainspring
Cyma Tavannes 234	1.45 x 0.110 (0.105) x 360 (380) x 10.5 (10.0) mm	Buy mainspring
Gruen 325	1.45 x 0.105 x 340 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 1814	1.45 x 0.105 x 340 (380) x 9.5 (10.0) mm	Buy mainspring
Winton 1192	1.45 x 0.100 (0.105) x 340 (380) x 9.5 (10.0) mm	Buy mainspring
Elgin 629D	1.45 x 0.100 (0.105) x 340 (380) x 9.5 (10.0) mm	Buy mainspring
Elgin 629	1.45 x 0.100 (0.105) x 340 (380) x 9.5 (10.0) mm	Buy mainspring
A. Schild 2160	1.45 x 0.120 (0.105) x 360 (380) x 10.5 (10.0) mm	Buy mainspring
