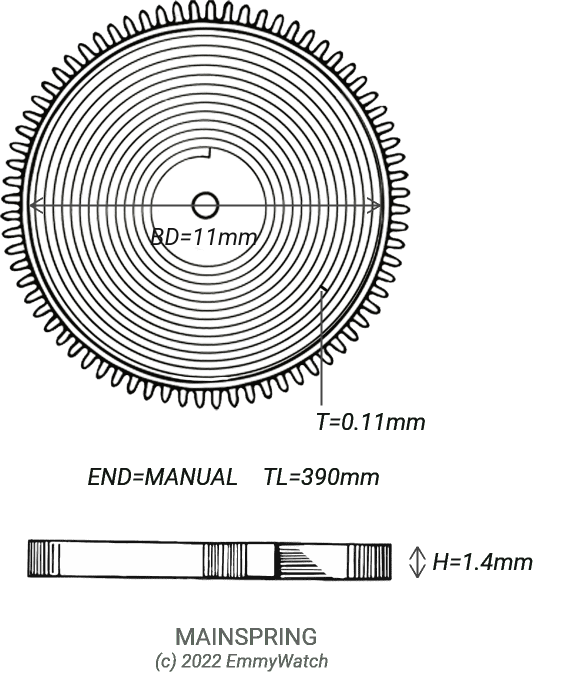

Mainspring
1.40 x 0.110 x 390 x 11.0 mm
Height (H): 1.4mm
Thickness (T): 0.11mm
Total Length (TL): 390mm
Barrel Diameter (BD): 11mm
End Type: Manual
The Height (H) (1.40mm) is selected. Return to full mainspring page here.
Similar Mainspring Listing
The Height (H) (1.40mm) in this mainspring is also used by the following movements with similar mainsprings. When values differ the exact value is shown brackets for reference:
| Movement | Mainspring | GR Reference # |
|---|---|---|
| Record 022-18 | 1.40 x 0.140 (0.110) x 330 (390) x 11.5 (11.0) mm |
