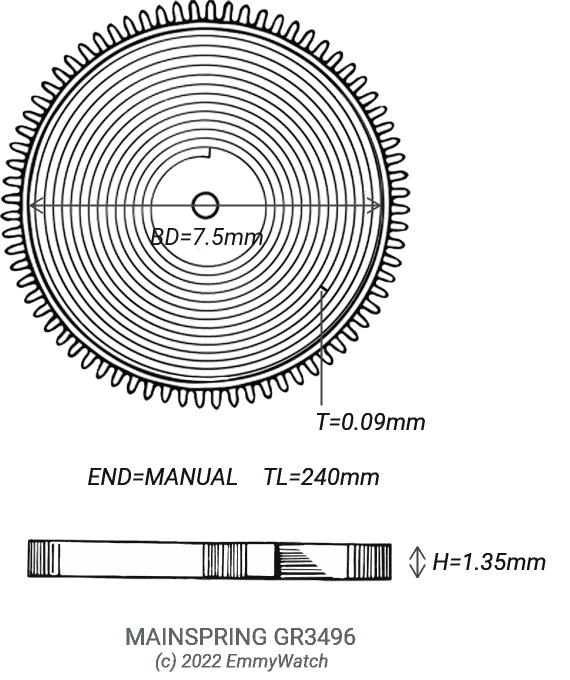

Mainspring
1.35 x 0.090 x 240 x 7.5 mm
GR Reference #: GR3496
Height (H): 1.35mm
Thickness (T): 0.09mm
Total Length (TL): 240mm
Barrel Diameter (BD): 7.5mm
End Type: Manual
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Elgin GRD 463 | ||
| Wittnauer ED2704-5Q | WITTNAUER CASE REFERENCE | |
| Hamilton 80420 | HAMILT CASE REFERENCE | |
| Lemania 19 | 19 | |
| Lemania 19 | 19 | |
| Longines 27MS | ||
| Omega 3749 | OMEGA CASE USES CALIBER 240 | |
| Omega 591.123 | OMEGA CASE USES CALIBER 1353 | |
| Wittnauer ED2704-5Q | WITTNAUER CASE REFERENCE |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to the mainspring used by the following movements. A similar mainspring differs slightly in one or more dimensions but may possibly still work as a replacement. When values differ the exact value is shown brackets for reference:
No results found for your filter
