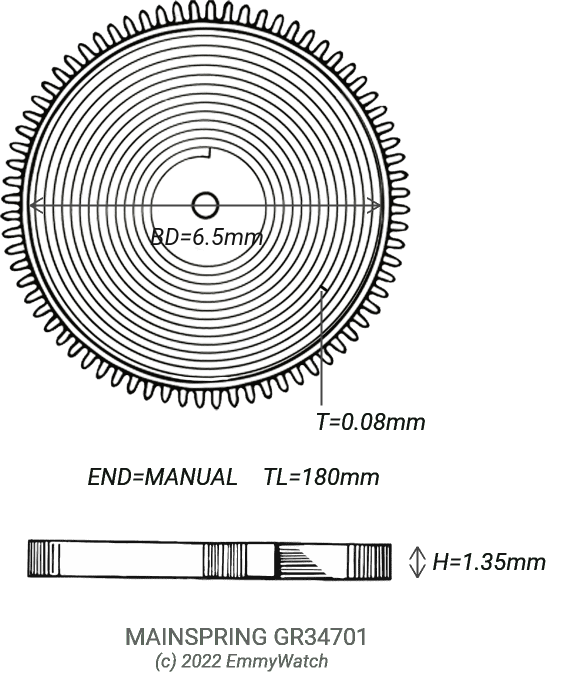

Mainspring
1.35 x 0.080 x 180 x 6.5 mm
GR Reference #: GR34701
Height (H): 1.35mm
Thickness (T): 0.08mm
Total Length (TL): 180mm
Barrel Diameter (BD): 6.5mm
End Type: Manual
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Brac 40 | 13 | |
| Hamilton 817 | AUTO | 11.5 |
| Citizen 4-069161 | CITIZE CASE REFERENCE | |
| Citizen 54-0048 | CITIZE CASE REFERENCE | |
| Citizen 4-108094 | CITIZEN CASE | |
| Brac 40 | 13 | |
| Citizen 4-G12927 | CITIZEN CASE | |
| Citizen 4-L09936 | CITIZEN CASE | |
| Citizen 54-0048 | CITIZE CASE REFERENCE | |
| Citizen 86-2754 | CITIZE CASE REFERENCE | |
| Citizen 8650 | QUARTZ-CRYSTRON-ANALOG MEGA (4 194 304 HZ) | 12 |
| Elgin 810 | SHOCK DIRECT CENTER SECOND | 10.5 |
| ETA 999.331 | QUARTZ ANALOG DELIRIUM | |
| Hamilton 817 | AUTO | 11.5 |
| Omega 111.0012 | OMEGA CASE USES CALIBER 620 | |
| Omega 411.003 | OMEGA CASE USES CALIBER 620 | |
| Seiko 2F50-5540 | SEIKO CASE REFERENCE | |
| Seiko V501-7A50 | PULSAR CASE REFERENCE | |
| Seiko W358-0A08 | SEIKO CASE 951201 | |
| Seiko Y513-6059 | PULSAR CASE | |
| Seiko Y665-5070 | PULSAR CASE REFERENCE |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to the mainspring used by the following movements. A similar mainspring differs slightly in one or more dimensions but may possibly still work as a replacement. When values differ the exact value is shown brackets for reference:
No results found for your filter
