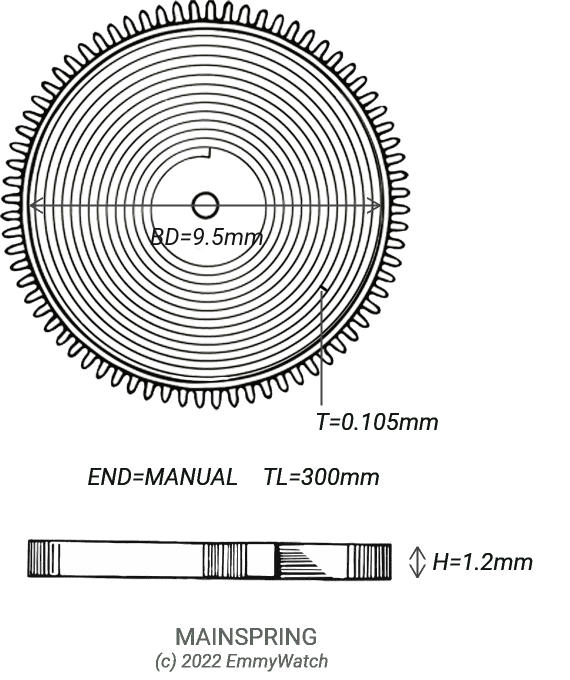

Mainspring

1.20 x 0.105 x 300 x 9.5 mm

Height (H): 1.2mm

Thickness (T): 0.105mm

Total Length (TL): 300mm

Barrel Diameter (BD): 9.5mm

End Type: Manual

To look for similar mainsprings that exactly match a specific dimension, select it from the links above.

Buy this mainspring

GR Approximation

This mainspring does not have a GR reference. The following GR mainsprings are the closest fit, when values differ the exact value is shown brackets for reference:

GR Reference #	Mainspring	Buy
GR2935	1.20 x 0.105 x 300 x 9.0 (9.5) mm	Buy mainspring
GR2936	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
GR2961	1.20 x 0.115 (0.105) x 300 x 9.5 mm	Buy mainspring
GR2920	1.20 x 0.100 (0.105) x 300 x 9.0 (9.5) mm	Buy mainspring
GR2949	1.20 x 0.110 (0.105) x 300 x 9.0 (9.5) mm	Buy mainspring

Movement Listing

This mainspring is used by the following movements:

Movement	Description	Ligne
Bettlach 8157	SS AUTO CALD (DAY/DATE) W/CORR	8.75
Bulova 6283.17
Caravelle 6UA2-17JL	17 JEWEL, 21,600 BPH
Citizen 4-201035	CITIZEN CASE
Citizen 4-205707	CITIZEN CASE
Citizen 4-226232	CITIZEN CASE
Citizen 4-796454	CITIZEN CASE
Citizen 4-952499	CITIZEN CASE
Citizen 4-H01466	CITIZEN CASE REFERENCE
Citizen 4-L09928	CITIZEN CASE
Citizen 4-S01094	CITIZEN CASE
Ebel 134	AS 1149 13L	13.75
Elgin 25
Elgin 313 5-1/2L	FEF 6600 17 JL INCA ADJ STUDHOLDER	5.5
ETA 2553	21600BPH DSS AUTO CAL INCA ADJ STUD HOLD	7.75
Mido 8031	MIDO CASE REFERENCE
Omega 2909	OMEGA CASE USES CALIBER 501
Omega 7653	OMEGA CASE USES CALIBER 480 660 650
Ronda 215P		12
Seiko 1700-7030	SEIKO CASE REFERENCE
Seiko 2P20-5H60	SEIKO CASE REFERENCE
Seiko 3E29-5130	SEIKO CASE REFERENCE
Seiko 5Y22-8059	SEIKO CASE REFERENCE
Seiko V501-6P20	SEIKO CASE 971129
Seiko Y699

No results found for your filter

Similar Mainspring Listing

This mainspring is similar to the mainspring used by the following movements. A similar mainspring differs slightly in one or more dimensions but may possibly still work as a replacement. When values differ the exact value is shown brackets for reference:

Movement	Mainspring	Buy
A. Schild 1588	1.20 x 0.105 x 300 x 9.0 (9.5) mm	Buy mainspring
International Durowe 540	1.20 x 0.100 (0.105) x 315 (300) x 9.5 mm	Buy mainspring
Cyma Tavannes 65	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Otero 740	1.20 x 0.105 x 300 x 9.0 (9.5) mm	Buy mainspring
International Durowe 445	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
International Durowe 443	1.20 x 0.105 x 300 x 9.0 (9.5) mm	Buy mainspring
Patek Philippe 90A	1.20 x 0.105 x 300 x 9.0 (9.5) mm	Buy mainspring
Vulcain 65Y	1.20 x 0.110 (0.105) x 300 x 9.0 (9.5) mm	Buy mainspring
International Durowe 543	1.20 x 0.105 x 300 x 9.0 (9.5) mm	Buy mainspring
Otero 744	1.20 x 0.105 x 300 x 9.0 (9.5) mm	Buy mainspring
International Durowe 275	1.20 x 0.120 (0.105) x 270 (300) x 9.5 mm	Buy mainspring
International Durowe 441	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
International Durowe 446	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
International Durowe 440	1.20 x 0.105 x 300 x 9.0 (9.5) mm	Buy mainspring
A. Schild 1539	1.20 x 0.100 (0.105) x 320 (300) x 9.0 (9.5) mm	Buy mainspring
A. Schild 1538	1.20 x 0.100 (0.105) x 320 (300) x 9.0 (9.5) mm	Buy mainspring
Vulcain 65MS	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Otero 840	1.20 x 0.105 x 300 x 9.0 (9.5) mm	Buy mainspring
A. Schild 1593	1.20 x 0.105 x 300 x 9.0 (9.5) mm	Buy mainspring
Elgin 870	1.20 x 0.110 (0.105) x 300 x 9.0 (9.5) mm	Buy mainspring
Cyma Tavannes 65	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Omega 520	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Omega 511	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Tissot 781	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Omega 510	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Excelsior Park 51	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
International Durowe 445	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Vulcain 655	1.20 x 0.100 (0.105) x 320 (300) x 9.0 (9.5) mm	Buy mainspring
Vulcain 65ME	1.20 x 0.100 (0.105) x 320 (300) x 9.0 (9.5) mm	Buy mainspring
Bulova 6AE	1.20 x 0.100 (0.105) x 320 (300) x 9.0 (9.5) mm	Buy mainspring
Tissot 782/1	1.20 x 0.110 (0.105) x 320 (300) x 9.5 mm	Buy mainspring
Tissot 781/1	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Tissot 782	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Excelsior Park 5C	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
International Durowe 275	1.20 x 0.120 (0.105) x 270 (300) x 9.5 mm	Buy mainspring
International Durowe 441	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Geneva Sport Watch 23.7-4	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
International Durowe 446	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Excelsior Park 5	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Excelsior Park 51CSC	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Vulcain 65SP	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Vulcain 658	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
A. Schild 1702	1.20 x 0.105 x 340 (300) x 10.0 (9.5) mm	Buy mainspring
Vulcain 656	1.20 x 0.100 (0.105) x 320 (300) x 9.0 (9.5) mm	Buy mainspring
Vulcain 657	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
A. Schild 1703	1.20 x 0.105 x 340 (300) x 10.0 (9.5) mm	Buy mainspring
Jules Jurgenson 65	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Bulova 6AF	1.20 x 0.100 (0.105) x 320 (300) x 9.0 (9.5) mm	Buy mainspring
Vulcain 65MS	1.20 x 0.105 x 320 (300) x 9.5 mm	Buy mainspring
Vulcain 659	1.20 x 0.100 (0.105) x 320 (300) x 9.0 (9.5) mm	Buy mainspring
Vulcain 65MA	1.20 x 0.100 (0.105) x 320 (300) x 9.0 (9.5) mm	Buy mainspring
Hermann Becker 111	1.20 x 0.100 (0.105) x 320 (300) x 9.0 (9.5) mm	Buy mainspring
Hermann Becker 110	1.20 x 0.100 (0.105) x 320 (300) x 9.0 (9.5) mm	Buy mainspring
Venus 245	1.20 x 0.110 (0.105) x 300 x 9.0 (9.5) mm	Buy mainspring
International Durowe 1055	1.20 x 0.110 (0.105) x 300 x 9.0 (9.5) mm	Buy mainspring
Dugena 648	1.20 x 0.110 (0.105) x 290 (300) x 9.5 mm	Buy mainspring
Hermann Becker 114	1.20 x 0.100 (0.105) x 320 (300) x 9.0 (9.5) mm	Buy mainspring
Venus 240	1.20 x 0.110 (0.105) x 300 x 9.0 (9.5) mm	Buy mainspring
International Durowe 430	1.20 x 0.110 (0.105) x 300 x 9.0 (9.5) mm	Buy mainspring
Gruen 826	1.20 x 0.110 (0.105) x 290 (300) x 9.5 mm	Buy mainspring
International Durowe 425	1.20 x 0.110 (0.105) x 300 x 9.0 (9.5) mm	Buy mainspring
Gruen 827	1.20 x 0.110 (0.105) x 290 (300) x 9.5 mm	Buy mainspring
Hermann Becker 214	1.20 x 0.100 (0.105) x 320 (300) x 9.0 (9.5) mm	Buy mainspring
International Durowe 430/1	1.20 x 0.110 (0.105) x 290 (300) x 9.5 mm	Buy mainspring
International Durowe 425/1	1.20 x 0.110 (0.105) x 290 (300) x 9.5 mm	Buy mainspring
Alpina 827SS	1.20 x 0.110 (0.105) x 290 (300) x 9.5 mm	Buy mainspring
Hermann Becker 411	1.20 x 0.110 (0.105) x 290 (300) x 9.5 mm	Buy mainspring
Hermann Becker 414	1.20 x 0.110 (0.105) x 290 (300) x 9.5 mm	Buy mainspring
Venus 246	1.20 x 0.110 (0.105) x 290 (300) x 9.5 mm	Buy mainspring
Venus 247	1.20 x 0.110 (0.105) x 290 (300) x 9.5 mm	Buy mainspring
International Durowe 540	1.20 x 0.100 (0.105) x 315 (300) x 9.5 mm	Buy mainspring
Cyma Tavannes 064	1.20 x 0.100 (0.105) x 315 (300) x 9.5 mm	Buy mainspring
Cyma Tavannes 074	1.20 x 0.100 (0.105) x 315 (300) x 9.5 mm	Buy mainspring
Alpina 861	1.20 x 0.100 (0.105) x 315 (300) x 9.5 mm	Buy mainspring
Cyma Tavannes 067	1.20 x 0.100 (0.105) x 315 (300) x 9.5 mm	Buy mainspring
Peseux 184	1.20 x 0.100 (0.105) x 300 x 9.0 (9.5) mm	Buy mainspring
Fontainemelon 9332	1.20 x 0.100 (0.105) x 300 x 9.0 (9.5) mm	Buy mainspring
Fontainemelon 332	1.20 x 0.100 (0.105) x 300 x 9.0 (9.5) mm	Buy mainspring
O'maire 150-151	1.20 x 0.100 (0.105) x 300 x 9.0 (9.5) mm	Buy mainspring
Marc Favre 495	1.20 x 0.100 (0.105) x 300 x 9.0 (9.5) mm	Buy mainspring
