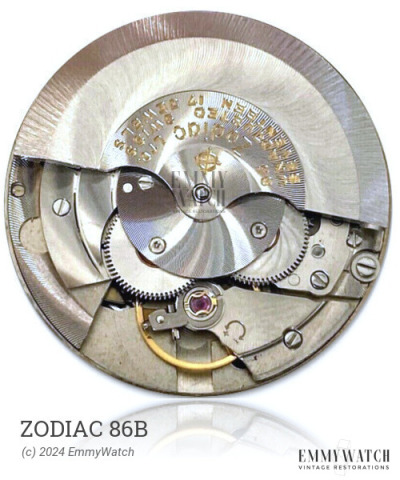

Zodiac 86B
Ligne: 11.5'''
Jewels: 17/21/25
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Automatic
Diameter: 26 mm
Height: 4.6 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Zodiac 86B is an automatic watch movement featuring an indirectly driven minute hand, which allows for a large balance and low profile design. This movement incorporates the functions of automatic winding and sweep seconds.
The Zodiac 86B features the following functions:
- Automatic Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.15 x 0.105 x 360 x 10.5 mm | GR2805X | Auto | Buy mainspring |
| 1.10 x 0.120 x 320 x 10.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
