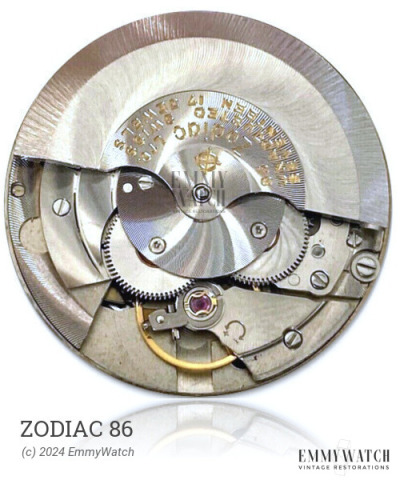

Zodiac 86
Ligne: 11.5'''
Jewels: 17/21/25
Lift Angle: 52°
Power Reserve: 55 hrs
Frequency: 21600 vph
Type: Automatic
Period used: ~1975
Diameter: 26 mm
Height: 5.35 mm
Hands: 1.50 x 0.90 x 0.25 mm
The Zodiac 86 is an automatic mechanical watch movement introduced around 1975. It features a sweep second hand and a quickset date function. Some models of this movement may also include an optional hack feature. The Zodiac 86 also includes Incabloc Shock Protection for added durability.
The Zodiac 86 features the following functions:
- Automatic Winding
- Calendar
- Date: quickset
- Incabloc Shock Protection
- Optional hack feature
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.100 x 500 x 10.5 mm | GR3261X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
