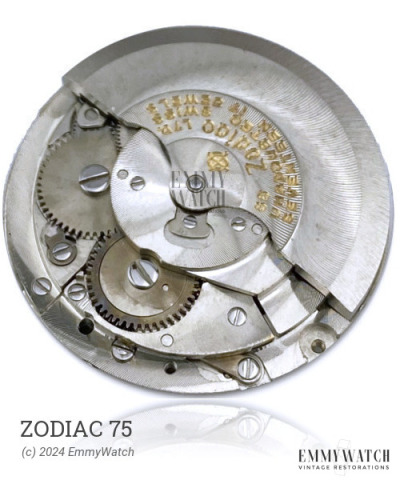

Zodiac 75
Ligne: 9.75'''
Jewels: 17
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1942-
Diameter: 21.9 mm
Height: 5.15 mm
Hands: 1.20 x 0.60 / 0.18 mm
The Zodiac 75 is a ladies' watch movement manufactured from 1942 onwards. It features a bidirectional rotor winding design, similar to the Felsa 410 gents' calibre introduced in the same year. The movement is manually wound and includes functions such as sub seconds and automatic winding capabilities.
The Zodiac 75 features the following functions:
- Automatic Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.070 x 220 x 6.5 mm | Auto | Buy mainspring | |
| 1.30 x 0.070 x 200 x 6.5 mm | GR3185X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
