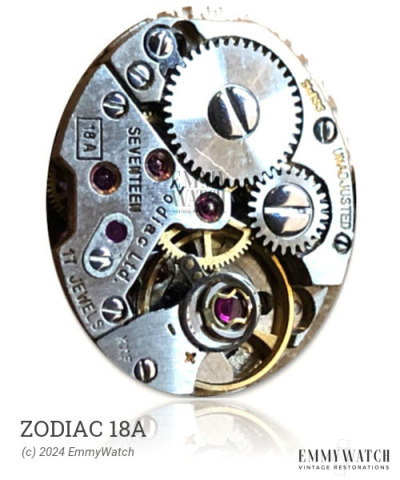

Zodiac 18A
Ligne: 11.5'''
Jewels: 17/21
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 26 mm
Height: 3.6 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Zodiac 18A is a manual wind watch movement with a sweep second function. It features an early fixed or later mobile stud carrier. The differences between the 2391, 2393, 2395, 2397, 2399, 2401, 2403, and 2405 models are not known. The Zodiac 18A movement was in use around the period of 1960.
The Zodiac 18A features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.110 x 340 x 10.0 mm | GR3285 | Manual | Buy mainspring |
| 1.30 x 0.110 x 320 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
