Zentra 100
Ligne: 11.5'''
Jewels: 17
Power Reserve: 53 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 26 mm
Height: 3.95 mm
Hands: 1.50 x 0.80 / 0.21 mm

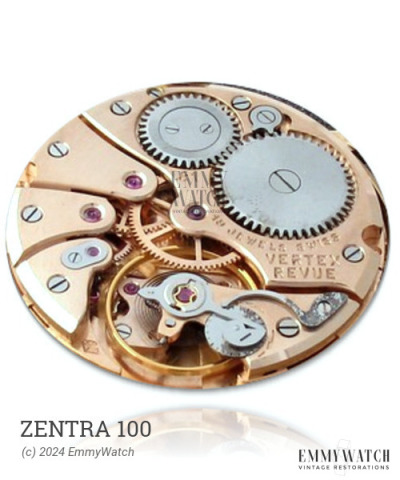

The Zentra 100 mechanical watch movement is a manual wind movement with a sub second function. It is part of a series of movements, including the 1261, 1263, 1265, 1267, 1269, 1271, and 1273, with differences not known. The Zentra 100 movement dates back to approximately 1945.
The Zentra 100 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.110 x 290 x 9.5 mm | Manual | Buy mainspring | |
| 1.80 x 0.105 x 300 x 9.0 mm | GR5266 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
