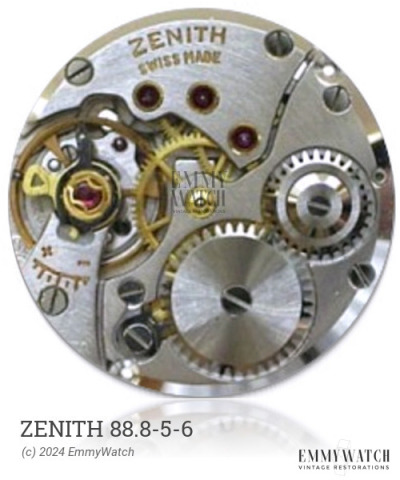

Zenith 88.8-5-6
Ligne: 11.5'''
Jewels: 17
Power Reserve: 43 hrs
Frequency: 19800 vph
Type: Manual Wind
Period used: ~1965
Diameter: 26 mm
Height: 3.05 mm
Hands: 1.40 x 0.90 x 0.20 mm
The Zenith 88.8-5-6 watch movement features jewel bearings for the barrel, enabling smooth and efficient functioning of the timepiece. Its indirectly driven minute hand allows for a comparatively large balance and a low profile design. This movement is manually wound and includes a sweep second function. It was commonly used around 1965.
The Zenith 88.8-5-6 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5059 | Ordinary/None | Buy staff |
| 5059 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.05 x 0.110 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
