Zenith 670
Ligne: 12.5'''
Jewels: 21/25
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1957-1962
Diameter: 28.5 mm
Height: 4.8 mm
Hands: 1.50 x 0.90 mm
Base: Buren 1001

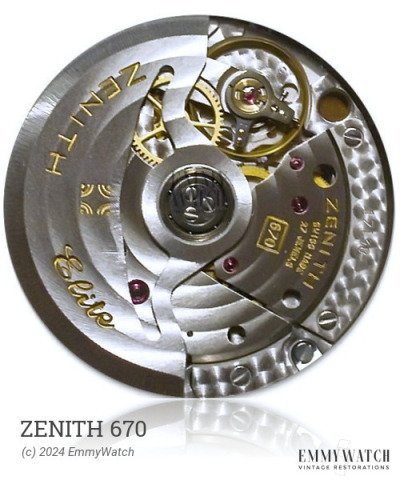

The Zenith 670 watch movement, produced from 1957 to 1962, belongs to the first movement family featuring a micro rotor. It employs a self-winding gear mechanism with direction switching facilitated by a pinion that floats between two large jewels. Additionally, this movement incorporates the following functions: automatic winding, date display that can be set by changing the time between 23:30 and 24:00 hours.
The Zenith 670 features the following functions:
- Automatic Winding
- Date setting: Can be changed between 23:30 and 24:00h
- Function list for watch movements:
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.095 x 9.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
