Watch Database

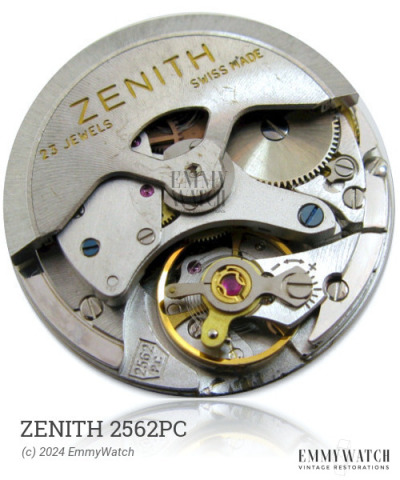

Zenith 2562PC
Ligne: 7.75'''
Jewels: 17/30
Power Reserve: 39 hrs
Frequency: 216000 vph
Type: Automatic
Period used: ~1965
Diameter: 17.5 mm
Height: 4.5 mm
Hands: 1.10 x 0.60 mm
The Zenith 2562PC watch movement is a detached manual wind movement with a selfwinding gear that includes a direction switching feature by a pinion positioned between two large jewels. The movement also features a ratchet on the dial side and a crown mechanism with a rocker bar. It offers automatic functionality and includes a date function. The Zenith 2562PC movement was used during the approximate period of 1965.
The Zenith 2562PC features the following functions:
- Automatic Winding
- Date
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.080 x 220 x 7.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
