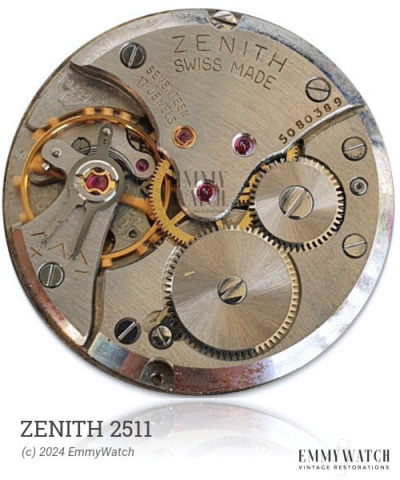

Zenith 2511
Ligne: 6.75 x 8'''
Jewels: 17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1949
Size: 15.3 x 18.2 mm
Hands: 1.10 x 0.60 x 0.18 mm
Base: Bulova 6BA
The Zenith 2511 watch movement is a mechanical movement with manual winding capability. It features a sweep second function and was used during the period around 1949. The design details of this movement suggest that the ebauches likely originated from Aurore-Villeret. Not much is known regarding the differences between the 6BMC and 6CAC variants of this movement.
The Zenith 2511 features the following functions:
- Manual Winding
- Mechanical Movement
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4702 | Ordinary/None | Buy staff |
| 394 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.080 x 260 x 7.5 mm | GR3474 | Manual | Buy mainspring |
| 1.35 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
