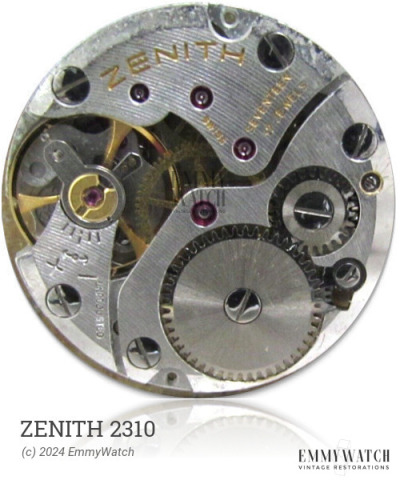

Zenith 2310
Ligne: 10.5'''
Jewels: 15/17
Lift Angle: 49°
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 23.7 mm
Height: 3.8 mm
Hands: 1.30 x 0.70 / 0.22 mm
Base: Arogno 151
The Zenith 2310 watch movement is a manual wind movement with a sub-second function. It is part of a series of movements, including the Arogno 151 and Arogno 153, which have minor differences between them. The Zenith 2310 movement was used around the period of 1955.
The Zenith 2310 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.110 x 260 x 8.0 mm | GR4904 | Manual | Buy mainspring |
| 1.40 x 0.120 x 320 x 9.5 mm | GR3728 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
Documents
Parts Listing
