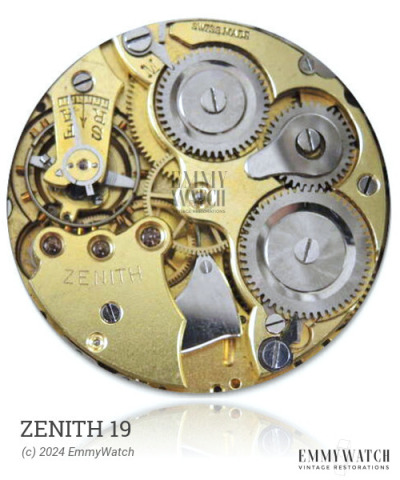

Zenith 19
Ligne: 10.5'''
Jewels: 1/15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1980
Diameter: 23.69 mm
Hands: 1.50 x 1.00 mm
The Zenith 19 watch movement features a pin-lever escapement and is a manual-wind movement. It offers the option of a sub-second dial, and is equipped with a pin lever, a type of escapement mechanism. The movement was primarily used in watches produced around the 1980s.
The Zenith 19 features the following functions:
- Manual Winding
- Option: sub second
- Pin lever
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2735 | Ordinary/None | Buy staff |
| 2144 | Ordinary/None | Buy staff |
| 2896 | Ordinary/None | Buy staff |
| 2895 | Ordinary/None | Buy staff |
| 3916 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.080 x 12.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
