Zenith 18.28.1.P.E
Ligne: 11.5'''
Jewels: 17
Power Reserve: 53 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 26 mm
Height: 3.95 mm
Hands: 1.50 x 0.80 / 0.21 mm

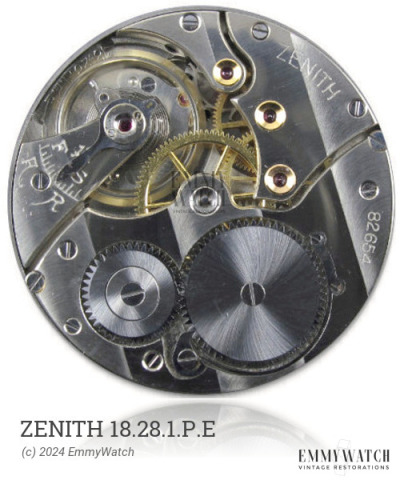

The Zenith 18.28.1.P.E is a mechanical watch movement that was manufactured around 1945. It features manual winding and a sub-second function. However, there is limited available information regarding the differences between the Zenith 18.28.1.P.E and other movements in the ETA 12xx series, including the 1261, 1263, 1265, 1267, 1269, 1271, and 1277.
The Zenith 18.28.1.P.E features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.110 x 290 x 9.5 mm | Manual | Buy mainspring | |
| 1.80 x 0.105 x 300 x 9.0 mm | GR5266 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
