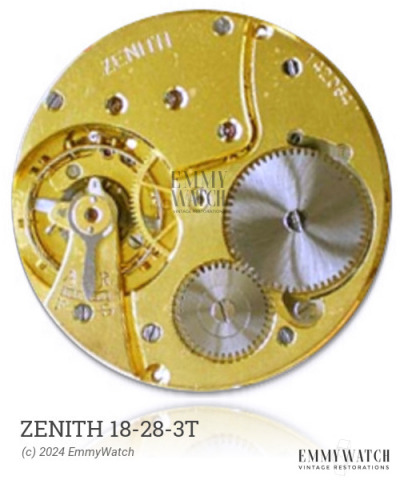

Zenith 18-28-3T
Ligne: 11.5'''
Jewels: 15/17/19/21
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 26 mm
Height: 4.15 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Zenith 18-28-3T watch movement belongs to a series of movements including the 1081, 1083, 1085, 1087, 1089, 1095, 1097, 1099, 1141, 1143, 1145, 1147, 1149, 1155, 1157, 1175, 1177, 1179, 1181, 1183, and 1287. The specific functionality of the Zenith 18-28-3T movement includes manual winding, sweep seconds, and a period of use around 1955.
The Zenith 18-28-3T features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.110 x 290 x 9.5 mm | Manual | Buy mainspring | |
| 1.50 x 0.100 x 300 x 9.0 mm | GR4122 | Manual | Buy mainspring |
| 1.50 x 0.105 x 300 x 9.0 mm | GR4134 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
