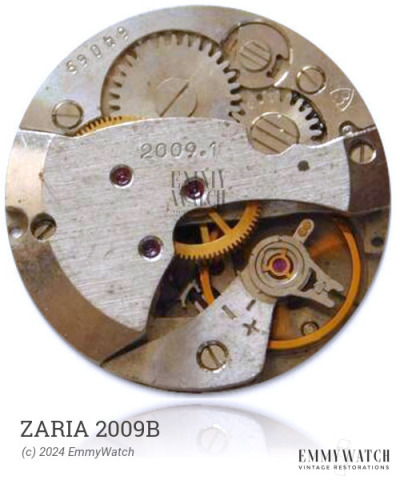

Zaria 2009B
Ligne: 8.75'''
Jewels: 7/15/17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1935-1967
Diameter: 19.7 mm
Height: 3.45 mm
Hands: 1.20 x 0.65 / 0.18 mm
The Zaria 2009B watch movement was produced from 1935 to 1967 with a total of less than 16,000,000 units manufactured. This movement did not include a separate escape-wheel cock. Various balances were used in these movements, with some having the same calibre designation while others had different designations. The exact differences between models are not known, but they were small enough to allow interchangeability of parts. Furthermore, there are visually similar calibres with a height (H) of 3.0mm. The Zaria 2009B movement is a manual wind movement with a sub-second feature.
The Zaria 2009B features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.080 x 260 x 7.0 mm | GR4446 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
