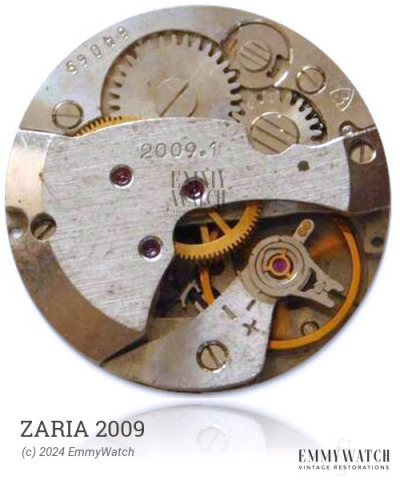

Return To ShopThe Zaria 2009 is an open face calibre pocketwatch movement available in 18.5 and 19''' sizes, with heights ranging from 4.2 to 5.9mm. It offers options for a bimetallic screw balance and a Breguet hairspring. Variations include different bridge layouts, two base plates with varying dial-feet positions, and slightly differing setting-lever springs. Although the complete assignment of these differences to the FHF 1 to 14 groups and specific calibres like FHF 1144, 2144, 2146, 4144, and 4146 is only partially known, comparing the corresponding calibres provides a glimpse into their distinctions. This movement features stem winding and setting, sub-second functionality, and was commonly used around 1940.
The Zaria 2009 features the following functions:
Ronda Reference # | Shock System | Buy |
---|---|---|
1050 | Ordinary/None | Buy staff |
2683 | Incabloc | Buy staff |
Dimensions | GR Reference # | End Type | Buy |
---|---|---|---|
1.90 x 0.180 x 580 x 17.0 mm | GR5624 | Manual | Buy mainspring |
1.90 x 0.180 x 540 x 16.0 mm | GR5622 | Manual | Buy mainspring |
1.90 x 0.190 x 500 x 15.5 mm | GR5644 | Manual | Buy mainspring |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
