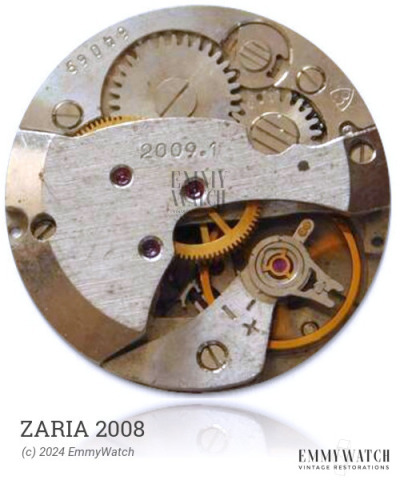

Zaria 2008
Ligne: 17.5'''
Jewels: 8
Power Reserve: 28 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1915
Diameter: 39.7 mm
Height: 5.6 mm
Hands: 1.85 x 0.70 / 0.26 mm
The Zaria 2008 watch movement is an open face calibre with a cylinder escapement. It features a ratchet on the dial side and a crown mechanism with a rocker bar. Optionally, there is a ratchet on the back side, but the crown wheel does not serve any function. This movement offers the functions of stem wind and set, as well as a sub second display. It was commonly used around the year 1915.
The Zaria 2008 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.00 x 0.190 x 430 x 15.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
