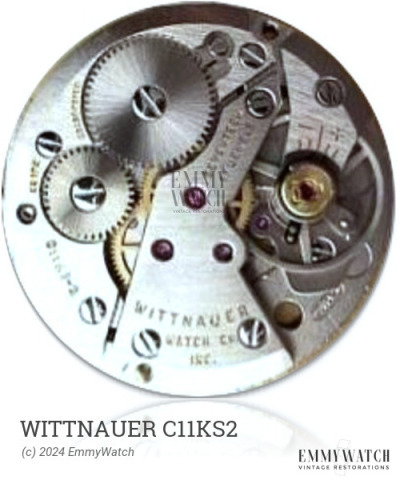

Wittnauer C11KS2
Ligne: 12'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Diameter: 27 mm
Height: 4.8 mm
Hands: 1.80 x 1.30 x 0.20 mm
The Wittnauer C11KS2 watch movement was designed with a unique configuration in which the train and hand gear are powered independently by the barrel. This movement offers several functions, including manual winding, a sweep second hand, day indication adjustable by +/- 24 hours, and a quickset date feature achieved by reverse setting. The Wittnauer C11KS2 movement was primarily used during the approximate period of 1970.
The Wittnauer C11KS2 features the following functions:
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.100 x 350 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
