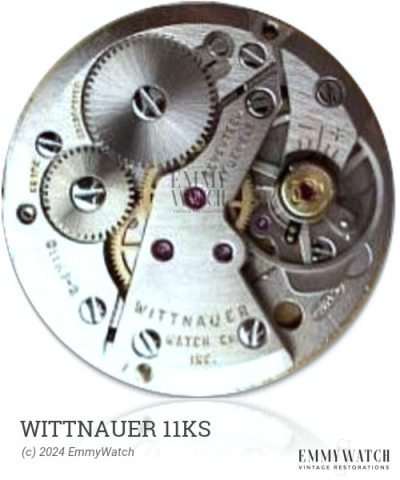

Wittnauer 11KS
Ligne: 11.5'''
Jewels: 15/17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 26 mm
Height: 3.5 mm
Hands: 1.40 x 0.80 / 0.22 mm
The Wittnauer 11KS is a mechanical watch movement with manual wind and sub-second functions. It was likely produced around 1945. Specific differences between the Wittnauer 11KS and other watch movements, such as the 930, 931, 935, 937, 942, 973, 1015, 1018, and 1024, are not known, but may vary in bridge design.
The Wittnauer 11KS features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.55 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.55 x 0.105 x 280 x 9.0 mm | GR4390 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
