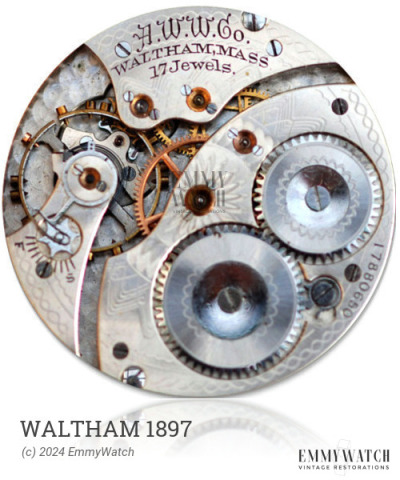

Waltham 1897
Ligne: 19'''
Jewels: 0/1/4/7
Frequency: 17280 vph
Type: Manual Wind
Period used: ~1945
Diameter: 43.15 mm
Height: 9.6 mm
Hands: 3.72 x 2.21 x 1.59 / 0.32 mm
The Waltham 1897 watch movement is characterized by its open face calibre, pin-lever escapement, and the presence of an indirect minute hand friction clutch on the barrel. It is notable for having both the watch and alarm functions driven by a single barrel. The movement offers stem wind and set alarm capabilities, a sub second feature, stem winding, and utilizes a pin lever mechanism. It was designed for clocks and was commonly used around the year 1945.
The Waltham 1897 features the following functions:
- Designed for Clocks
- Pin lever
- Stem wind and set alarm
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 465 | Ordinary/None | Buy staff |
| 463 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.10 x 0.225 x 800 x 21.0 mm | GR6118 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
