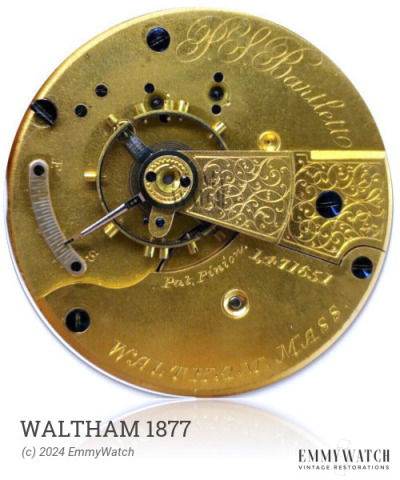

Waltham 1877
Ligne: 11.5'''
Jewels: 15
Power Reserve: 50 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 25.6 mm
Height: 3.55 mm
Hands: 1.30 x 0.60 / 0.21 mm
The Waltham 1877 watch movement is a manual wind movement with a sub-second function. It belongs to a series of movements, ranging from 310 to 329, with specifications that are not publicly known. The Waltham 1877 movement was used in watches produced around 1945.
The Waltham 1877 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 300 x 9.0 mm | GR4122 | Manual | Buy mainspring |
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
