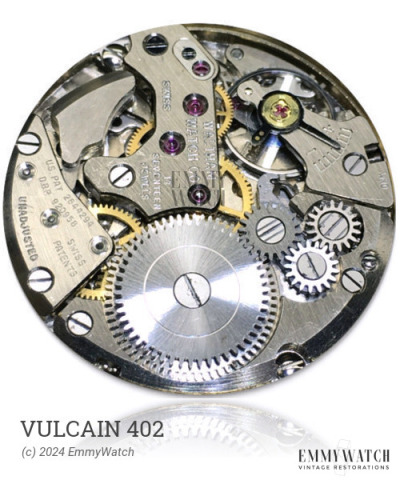

Vulcain 402
Ligne: 6.75 x 8'''
Jewels: 17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1949
Size: 15.3 x 18.2 mm
Height: 3.45 mm
Hands: 1.10 x 0.60 mm
Base: Aurore 120
The Vulcain 402 watch movement is a manual wind movement that was likely derived from the Aurore-Villeret 120 base calibre. It shares similarities with the FHF 120 and its variants, although conflicting information on interchangeability exists. Not much is known about the differences between the 6BM and 6CA calibres. The Vulcain 402 movement was used around the year 1949.
The Vulcain 402 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.080 x 260 x 7.5 mm | GR3474 | Manual | Buy mainspring |
| 1.35 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
