Venus 83
Ligne: 8.75'''
Jewels: 7/15/17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1935-1967
Diameter: 19.7 mm
Hands: 1.20 x 0.65 / 0.18 mm
Base: A. Schild 970

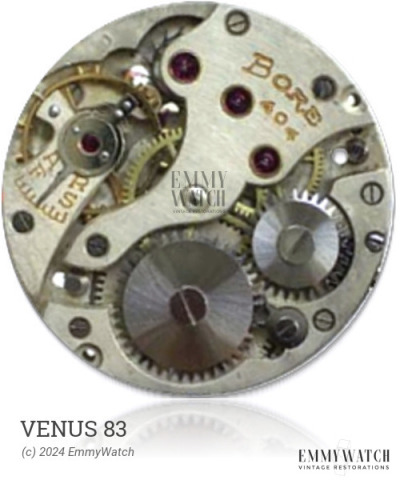

The Venus 83 watch movement, which was produced from 1935 to 1967, encompassed a production of less than 16,000,000 units. It did not include a separate escape-wheel cock, and its movements featured various balances with both similar and distinct calibre designations. The calibre designations had minor differences, enabling parts interchangeability. The movement functioned as a manual wind, sub seconds, date, and calendar movement.
The Venus 83 features the following functions:
- Calendar
- Date
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.080 x 260 x 7.0 mm | GR4446 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| HOUR WHEEL, HT 249 | 250/1251 | 2558/AS 1359 | Buy part |
