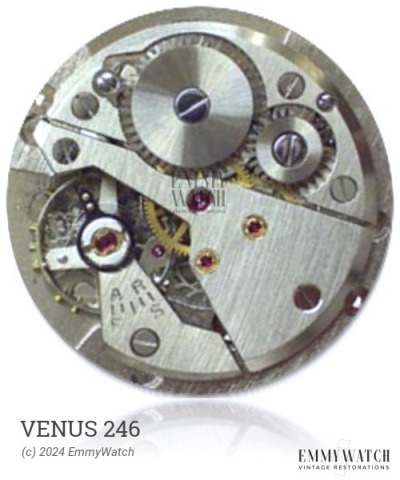

Venus 246
Ligne: 6.75 x 8'''
Jewels: 17
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Size: 15.3 x 19.2 mm
Height: 3.5 mm
Hands: 1.00 x 0.60 mm
The Venus 246 watch movement is a manual wind movement introduced in approximately 1955. It is available in variations with both sweep seconds and non-sweep seconds configurations.
The Venus 246 features the following functions:
- Manual Winding
- Sweep seconds and non-sweep seconds variations
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1778 | Ordinary/None | Buy staff |
| 69 | Ordinary/None | Buy staff |
| 2983 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.35 x 0.080 x 220 x 6.5 mm | GR3472 | Manual | Buy mainspring |
| 1.30 x 0.070 x 200 x 6.0 mm | GR3185 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
