Venus 192
Ligne: 11.5'''
Jewels: 17/21
Lift Angle: 52°
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Diameter: 26 mm
Height: 3.6 mm
Hands: 1.30 x 0.90 x 0.21 mm

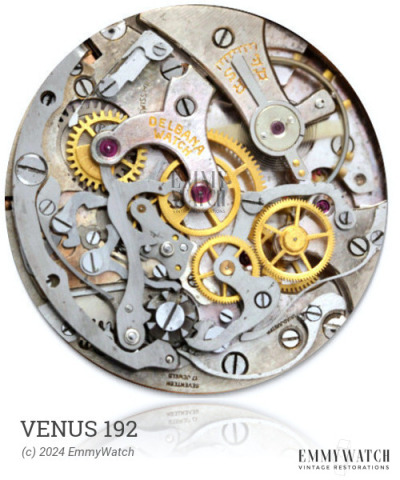

The Venus 192 watch movement is a manual wind movement that features a sweep second hand. It is part of a series of movements that includes the 72, 72-6, 72-7, 721, 723, and 725-7. The Venus 192 movement was used during approximately 1970.
The Venus 192 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4102 | Ordinary/None | Buy staff |
| 5433 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.120 x 340 x 10.5 mm | GR2974 | Manual | Buy mainspring |
| 1.20 x 0.130 x 320 x 10.5 mm | GR2989 | Manual | Buy mainspring |
| 1.20 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring | |
| 1.20 x 0.130 x 300 x 9.5 mm | GR2988 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| ARBOR,PALLET S/C PVT 40X130X11 | 72S/256P | 715/FF 72 | Buy part |
| CROWN WHEEL RING | 422/405 | 3088/ROL | Buy part |
| GIB/BOLT INCA SHOCK .15 THICK | 400/774 | 180.15/INCA #12 | Buy part |
| JEWEL, INCA BALANCE 135X50X09 | 400/11 | 111.09/INCA#8 | Buy part |
| JEWEL, UPPER CAP INCA 120X18 | 400/8 | 122.11/INCA #6 | Buy part |
| LOWER SETTING D230 H11 | 400/1482 | 123.20.11 | Buy part |
| MAINSPRING 1.20-.13-300 9,5 | MS-39M | GR 2988 | Buy part |
| MINUTE WHEEL | 260/224 | 260/FF 553-2N | Buy part |
| PALLET ARBOR 40X95X11 | 72S/85P | 714/AS 1130 | Buy part |
| ROLLER 180X75X36 | 82S/40R | 730/31 | Buy part |
| ROLLER, INCABLOC 180X75X36 | 82S/147R | 730/AS 1649 | Buy part |
| SHOCK SPRING, LOWER 223 X 155 | 400/811 | 173.03/INC | Buy part |
| SHOCK SPRING, UPPER INCABLOC | 400/4 | 170.03/INCA #1 | Buy part |
| STAFF | 100/1818 | 723/276 | Buy part |
| STAFF, INCA | 100/1444 | 723/FF 72 | Buy part |
| STEM, FEMALE OA10.2O | 360/231 | 360/231 | Buy part |
| STEM, TAP 10 | 200/1163F | 401/FF 552-2N | Buy part |
| UPPER SETTING D317 H11 | 400/1489 | 100.21.317.11 | Buy part |
