Vacheron Constantin 17
(Vacheron)
Ligne: 11.5'''
Jewels: 17
Power Reserve: 40 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1965
Diameter: 26 mm
Height: 3.5 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: Forster 200

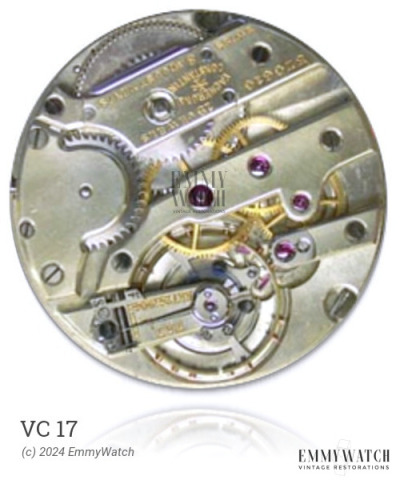

The Vacheron Constantin 17 watch movement, manufactured around 1965, is a manually wound movement with a sweep second function. It features an indirectly driven minute hand, which allows for a relatively large balance and a low-profile design. It is worth noting that there are no known differences between the Vacheron Constantin 17 and the Dugena 1109 watch movements.
The Vacheron Constantin 17 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.130 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
