Vacheron Constantin 16.75
(Vacheron)
Ligne: 19'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 42.9 mm
Height: 4.3 mm
Hands: 1.80 x 0.95 / 0.28 mm

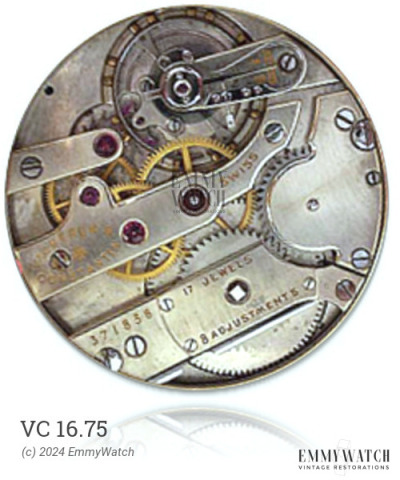

The Vacheron Constantin 16.75 watch movement is an open face calibre pocket watch movement that was manufactured with options like a bimetallic screw balance and a Breguet hairspring. It was made in different sizes with varying heights, ranging from 4.2mm to 5.9mm. There are several bridge layouts and two base plates with different dial-feet positions and setting-lever springs. The movements are categorized into groups FHF 1 to 14, with designations starting from FHF 22. The Vacheron Constantin 16.75 movement incorporates the following functions: stem wind and set, a sub-second hand, and it was commonly used around 1940.
The Vacheron Constantin 16.75 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1051 | Ordinary/None | Buy staff |
| 2684 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.180 x 580 x 17.0 mm | GR5074 | Manual | Buy mainspring |
| 1.70 x 0.190 x 480 x 16.0 mm | Manual | Buy mainspring |
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| SET BRIDGE | 445/293 | Buy part | |
| SET LEVER | 443/336 | Buy part | |
| SET SPRING | 440/231 | Buy part | |
| STAFF | 100/792 | Buy part | |
| STEM, TAP 1.44 | 200/350F | 401/FF 2124 | Buy part |
| STEM, TAP 1.44 (LONG) | 200/351F | Buy part |
