UTC-Unitime 29D
(Unitime)
Ligne: 20'''
Jewels: 4/8
Power Reserve: 32 hrs
Frequency: 17280 vph
Type: Manual Wind
Period used: ~1940
Diameter: 45.1 mm
Height: 6.0 mm
Hands: 2.85 x 1.83 / 0.22 mm

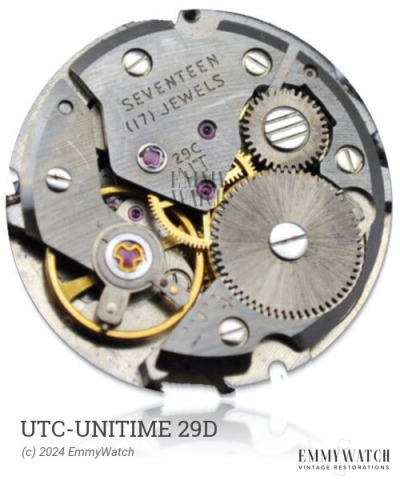

The UTC-Unitime 29D is an open face calibre watch movement from around 1940. It features a pin-lever escapement and employs an indirect minute hand friction clutch on the barrel. The differences between the UTC-Unitime 29D and 29 are not known. The movement allows for stem winding and setting, and includes a subsecond function.
The UTC-Unitime 29D features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.65 x 0.230 x 23.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
