UTC-Unitime 29
(Unitime)
Ligne: 10.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1961-1973
Diameter: 23.7 mm
Height: 4.45 mm
Hands: 1.50 x 0.90 x 0.20 mm

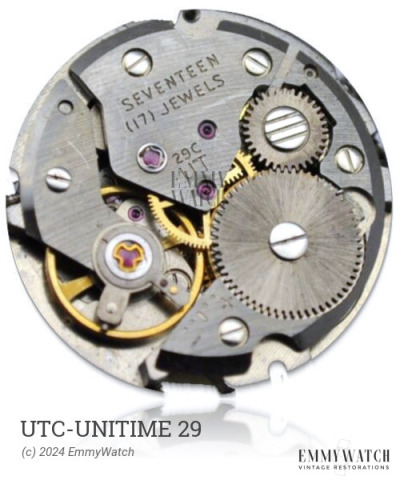

The UTC-Unitime 29 watch movement, manufactured from 1961 to 1973, is a manual wind movement with a sweep second and calendar function. It features a Kif-Duofix combined setting for the escapement wheel on the dial side. The date is set by changing the 21-24 hour period. This movement is a variant of the MST 416 that has been downsized to a 10.5''' size, as mentioned in older catalogs and data sheets.
The UTC-Unitime 29 features the following functions:
- Calendar
- Date: set by changing 21-24h
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.110 x 300 x 9.0 mm | GR4149 | Manual | Buy mainspring |
| 1.50 x 0.110 x 260 x 8.0 mm | GR4147 | Manual | Buy mainspring |
| 1.30 x 0.105 x 300 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents

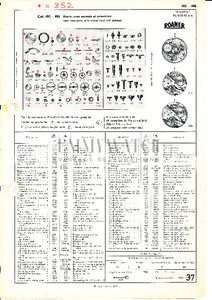

Parts Listing
