Universal Geneve 820
Ligne: 11.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 48 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 26 mm
Height: 4.5 mm
Hands: 1.30 x 0.90 x 0.21 mm

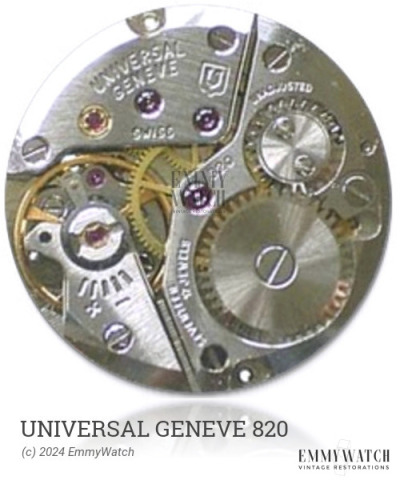

The Universal Geneve 820 watch movement, also known as FHF-ST or FHF, is a mechanical movement with manual winding and sweep seconds functionality. It is part of a larger series that includes the 961, 962, 963, 964, 965, and 969. The specific differences between these movements are not known. The Universal Geneve 820 movement was commonly used in watches around 1965.
The Universal Geneve 820 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5340 | Ordinary/None | Buy staff |
| 4840 | Incabloc | Buy staff |
| 5340 | Incabloc | Buy staff |
| 4840 | Kif | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.120 x 350 x 11.0 mm | Manual | Buy mainspring | |
| 1.60 x 0.110 x 400 x 10.5 mm | GR4519 | Manual | Buy mainspring |
| 1.60 x 0.110 x 340 x 10.0 mm | GR4516 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
