Universal Geneve 288
Ligne: 9.75'''
Jewels: 15
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1922-
Diameter: 22 mm
Height: 3.65 mm
Hands: 1.30 x 0.75 / 0.18 mm

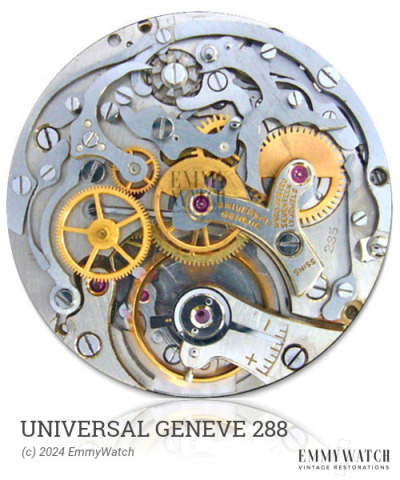

The Universal Geneve 288 watch movement, also known as Alpina 819 and Rolex 600, was manufactured by Aegler during the period of 1922-1937. It features a bimetallic screw balance and a Breguet hairspring. This manual wind movement operates with a sub second function. The Universal Geneve 288 movement was used starting from 1922 and onwards.
The Universal Geneve 288 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.110 x 280 x 8.5 mm | GR2633 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| SET BRIDGE | 445/GRU 818 | Buy part | |
| STAFF, HSP .40 INCABLOC | 100/652 | 723/ROL 620 | Buy part |
| STEM, TAP 10 | 200/824F (use 401/263) | 200/824F | Buy part |
| STEM, TAP 10 | 401/623 | Buy part | |
| STEM, TAP 8 | 200/418F | Buy part | |
| STEM, TAP 9 (PP) | 200/1345F (use 401/264) | 200/1345F | Buy part |
