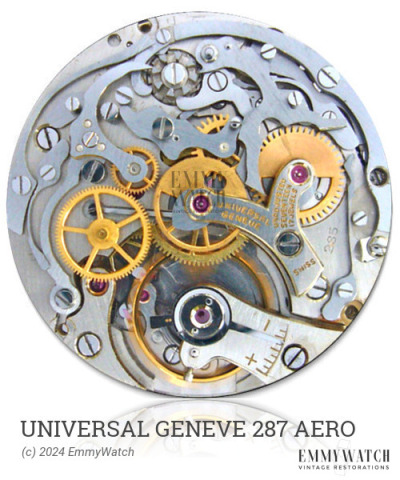

Universal Geneve 287 AERO
Jewels: 17
Power Reserve: 58 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1951-1955
Diameter: 23.7 mm
Height: 3.9 mm
Hands: 1.12 x 0.64 / 0.18 mm
The Universal Geneve 287 AERO watch movement, manufactured from 1951 to 1955, encompasses the Model 20 with a Breguet hairspring. This manual wind movement features a sub-second function. A total of 45,000 units were produced during its designated production period.
The Universal Geneve 287 AERO features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.65 x 0.100 x 300 x 9.0 mm | DBH | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BALANCE COMPLETE | 6574/ELG | 6574/ELG | Buy part |
| BARREL & COVER | 6452/ELG | 6-680/ELG | Buy part |
| BARREL ARBOR | 6450/ELG | 1-680/ELG | Buy part |
| CLICK | 5243/ELG | 42-532/ELG | Buy part |
| CLUTCH | 5244/ELG | 44-532/ELG | Buy part |
| CLUTCH | 137-532/ELG | Buy part | |
| COCK DOME W/JWL | 6265/ELG | 49-623/ELG | Buy part |
| FOURTH WHEEL | 6595/ELG | 284-680/ELG | Buy part |
| LOWER BALANCE CLAMP | 6576/ELG | 19-680/ELG | Buy part |
| MAIN WHEEL WASHER | 5277A9/ELG | 276-683/ELG | Buy part |
| MAINSPRING 1.65-.10-300 9 | MS-JA122 | GR 4736-DBH | Buy part |
| MAINSPRING 8/0 | 258-532/ELG .0039 | Buy part | |
| MAINSPRING, 1.65X.095X300 DBH | GR 4732-DBH | Buy part | |
| MINUTE WHEEL CLAMP | 6579/ELG | 40-680/ELG | Buy part |
| PALLET ARBOR | 6482/ELG | 2-671/ELG | Buy part |
| PALLET FORK & ARBOR | 6497/ELG | 141-671 | Buy part |
| RATCHET WHEEL SEE 6599C2 | 6599A9/ELG | 290-683/ELG | Buy part |
| SETTING LEVER | 5260/ELG | 5260/ELG | Buy part |
| STAFF | 6589/ELG P7.5 | 264-680/ELG | Buy part |
| STEM, TAP 9 | 5238/ELG | 3-532/ELG | Buy part |
| THIRD WHEEL | 5289/ELG | Buy part | |
| THIRD WHEEL COMPLETE | 6600/ELG | 295-680/ELG | Buy part |
| WINDING (BEVEL) PINION | 5264/ELG | 145-532/ELG | Buy part |
