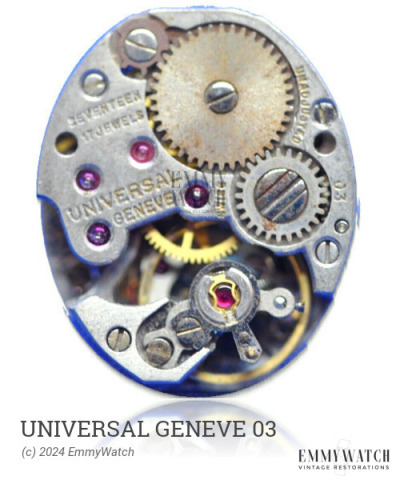

Universal Geneve 03
Ligne: 11.5'''
Jewels: 17
Power Reserve: 50 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 26 mm
Height: 4.75 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: A. Schild 1702
The Universal Geneve 03 watch movement features an early fixed or later mobile stud carrier. It is a manual wind movement that includes a sweep seconds function. The day and date functions are also present, with the day being set by +/-24h and the date being set by changing 20:30-24h.
The Universal Geneve 03 features the following functions:
- Calendar
- Date: set by changing 20:30-24h
- Day: set by +/-24h
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.105 x 340 x 10.0 mm | GR2937 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More | |||
| See More |
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CANNON PINION, SS HT 2.77 | 245/662 | 245/AS 1538 | Buy part |
| CANNON PINION, SS HT 3.02 | 245/1046 | 245/AS 1580 | Buy part |
| STEM | 401/299 (use 200/1275F) | 401/299 | Buy part |
| STEM, FEMALE OA10.25 | 360/314 | 360/314 | Buy part |
| STEM, FEMALE OA9.1 SH2.6 | 360/264 | 360/264 | Buy part |
| STEM, HUB 1.35 TAP 10 OVERSIZE | 200/52F | 401/AS 984 | Buy part |
| STEM, T10 | 200/1275F | 401/AS 1506 | Buy part |
| WINDING PINION | 410/725 | 410/AS 1580 | Buy part |
| WINDING PINION, DIA 3. | 410/1023 | 410/AS 1690 | Buy part |
