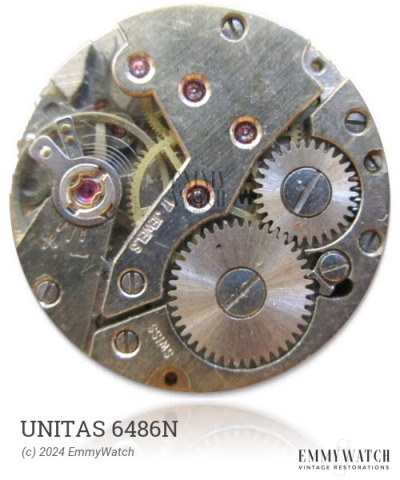

Unitas 6486N
Ligne: 11.5'''
Jewels: 15/17/21
Lift Angle: 52°
Power Reserve: 50 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1960
Diameter: 26 mm
Height: 4.0 mm
Hands: 1.50 x 0.80 / 0.22 mm
The Unitas 6486N watch movement is a manual wind movement designed with a subsecond function. It features a date complication that can be set by changing the time between 21:50-24h. The movement also includes a calendar function. This movement was used predominantly in watches produced around the 1960s.
The Unitas 6486N features the following functions:
- Calendar
- Date: set by changing 21:50-24h
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5406 | Ordinary/None | Buy staff |
| 5406 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.100 x 300 x 9.0 mm | GR5253 | Manual | Buy mainspring |
| 1.80 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
