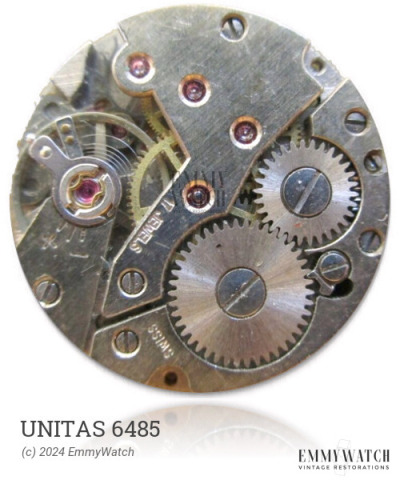

Unitas 6485
Ligne: 6.75 x 11'''
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Size: 15.4 x 25 mm
Height: 4.0 mm
Hands: 1.20 x 0.65 / 0.18 mm
The Unitas 6485 is a manual wind mechanical watch movement that features a sub second function. It is part of a series of movements including the 765 through 769, as well as the 842, with differences not known. The Unitas 6485 was in use around the 1940s.
The Unitas 6485 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.095 x 320 x 9.0 mm | GR3943 | Manual | Buy mainspring |
| 1.45 x 0.090 x 315 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
