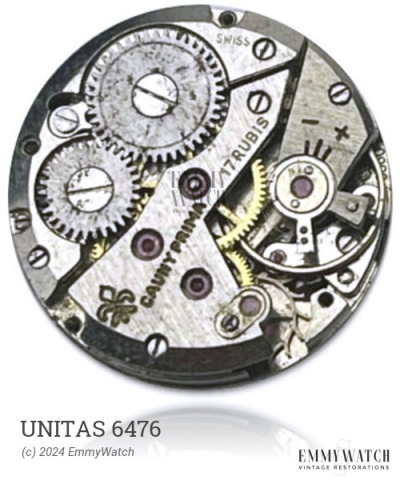

Return To ShopThe Unitas 6476 watch movement is equipped with a pin-lever escapement and an indirectly driven minute, which allows for a low profile and a large balance. It offers optional shock protection through elastical spiral balance spokes. It is commonly identified by the signature 8810, and it shares similarities with the 8811 and 8813, although the exact differences between them are not known. This movement features manual winding and includes a sweep second hand. It was in use around the period of 1975.
The Unitas 6476 features the following functions:
Dimensions | GR Reference # | End Type | Buy |
---|---|---|---|
1.35 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring | |
1.35 x 0.135 x 340 x 11.0 mm | GR3518 | Manual | Buy mainspring |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Part Description | Reference # | Alternate | Buy |
---|---|---|---|
CANNON PINION, SS HT 2.15 | 245/950 | Buy part | |
FOURTH WHEEL, SS HT 5.40 | 227/399 | Buy part | |
HOUR WHEEL, HT 1.25 | 250/1187 | 255/BET 8800 | Buy part |
PALLET ARBOR | 72S/330P | 714/BET 8800 | Buy part |
ROLLER, FINGER | 82S/337R | Buy part | |
SAMSON MSPG. | 4580 | Buy part | |
STAFF, REG/SHOCK | 100/2237 | Buy part | |
STEM, T10 | 200/1514F | 401/BET 8800 | Buy part |
STEM, T6 THREAD 1.20 | 200/1474F | 401/BET 8800 | Buy part |
